To Get Bronco Switches Fixing users manual

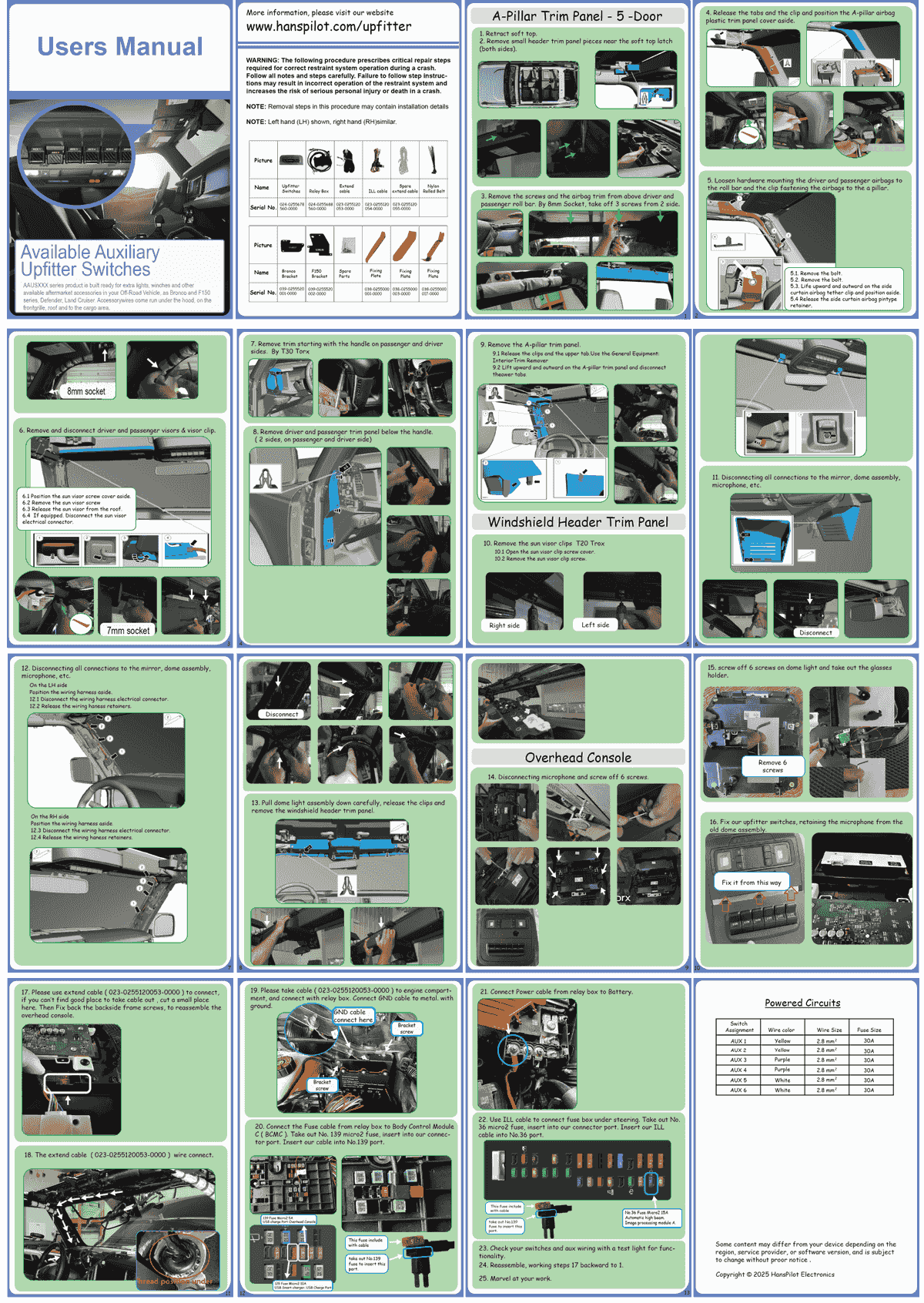

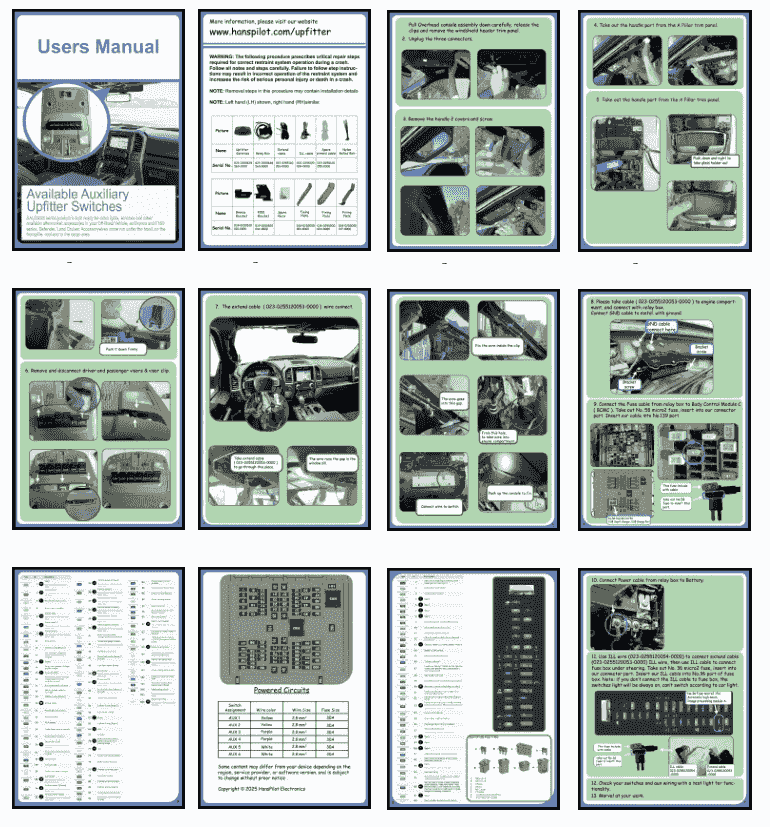

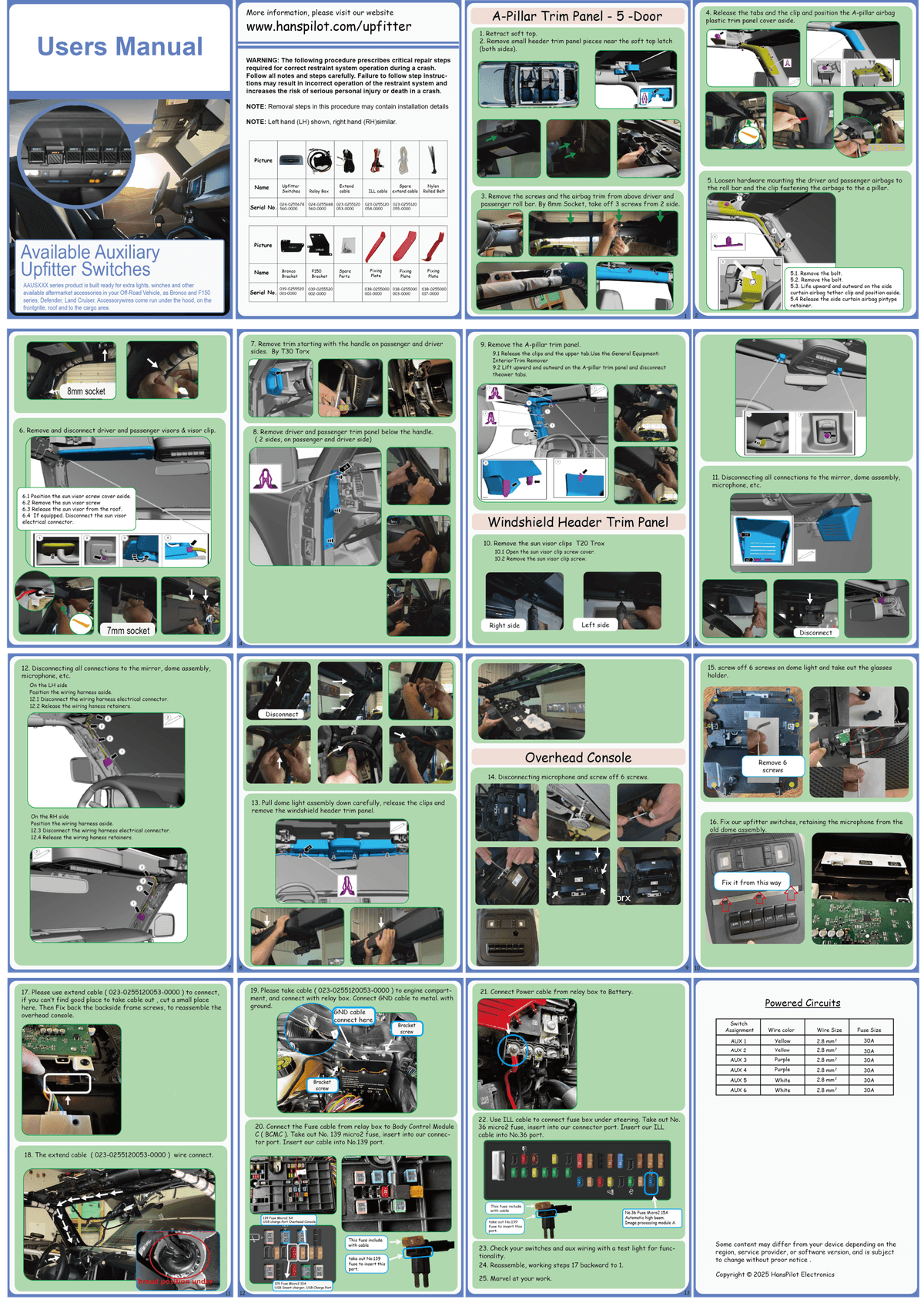

AAUS001 Users Manual
Order Now
we will ship the goods within 2 days by DHL or Fedex

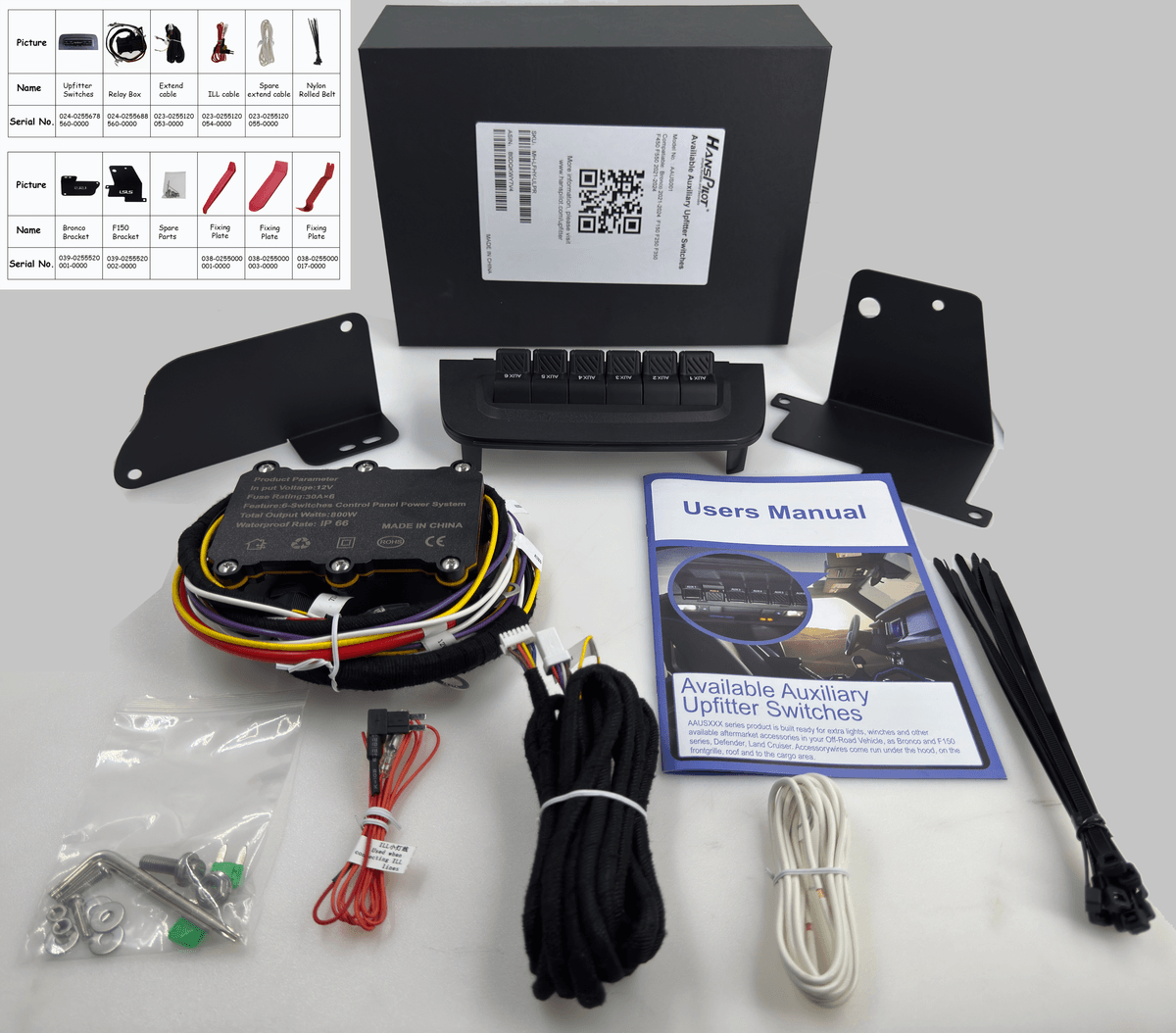

Available Auxiliary Upfitter Swithes
we offer stable quality, fast delivery and best service.
Available Auxiliary Upfitter Swithes From HansPilot
What are the auxiliary switches for?
Auxiliary switches (often called "aux switches" or "AUX") are customizable electrical controls used in vehicles—especially off-road trucks, SUVs, and performance cars—to power aftermarket accessories or additional features.
Primary Uses of Auxiliary SwitchesAftermarket Lighting
Control light bars, fog lights, rock lights, or LED pods.
Example: *"AUX 1" for roof-mounted spotlights, "AUX 2" for grill-mounted floodlights.*

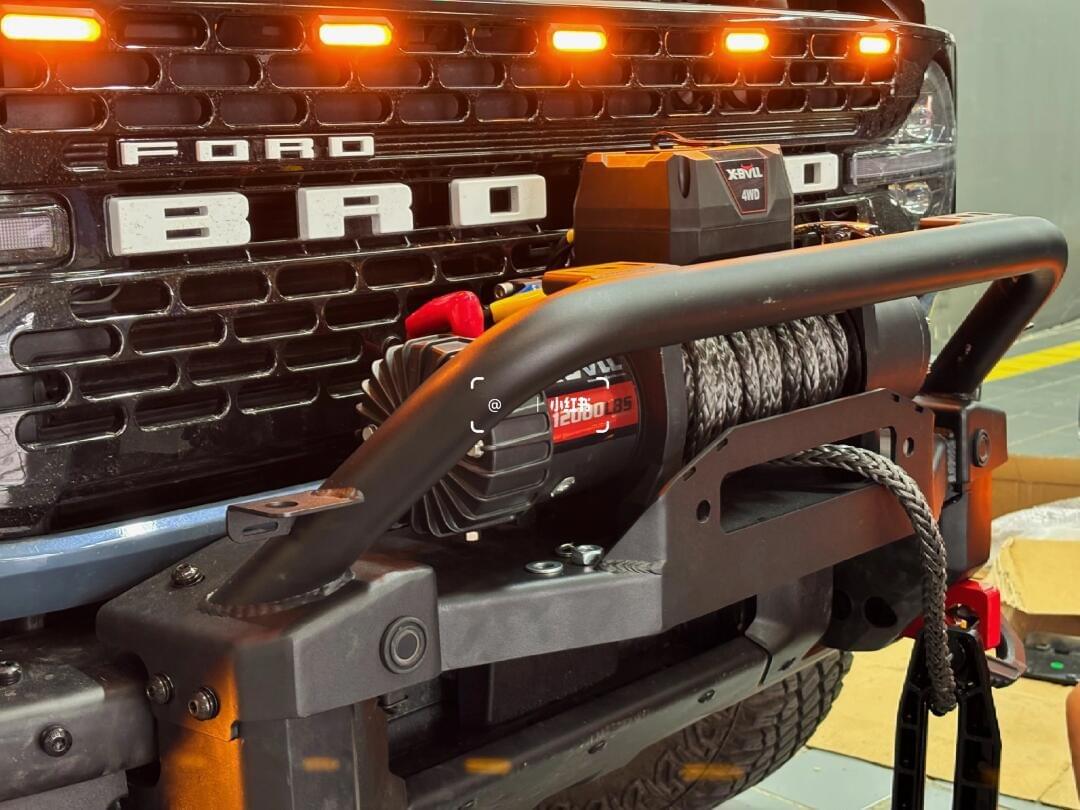

Winches & Recovery GearPower winches, air compressors, or electronic locking differentials.

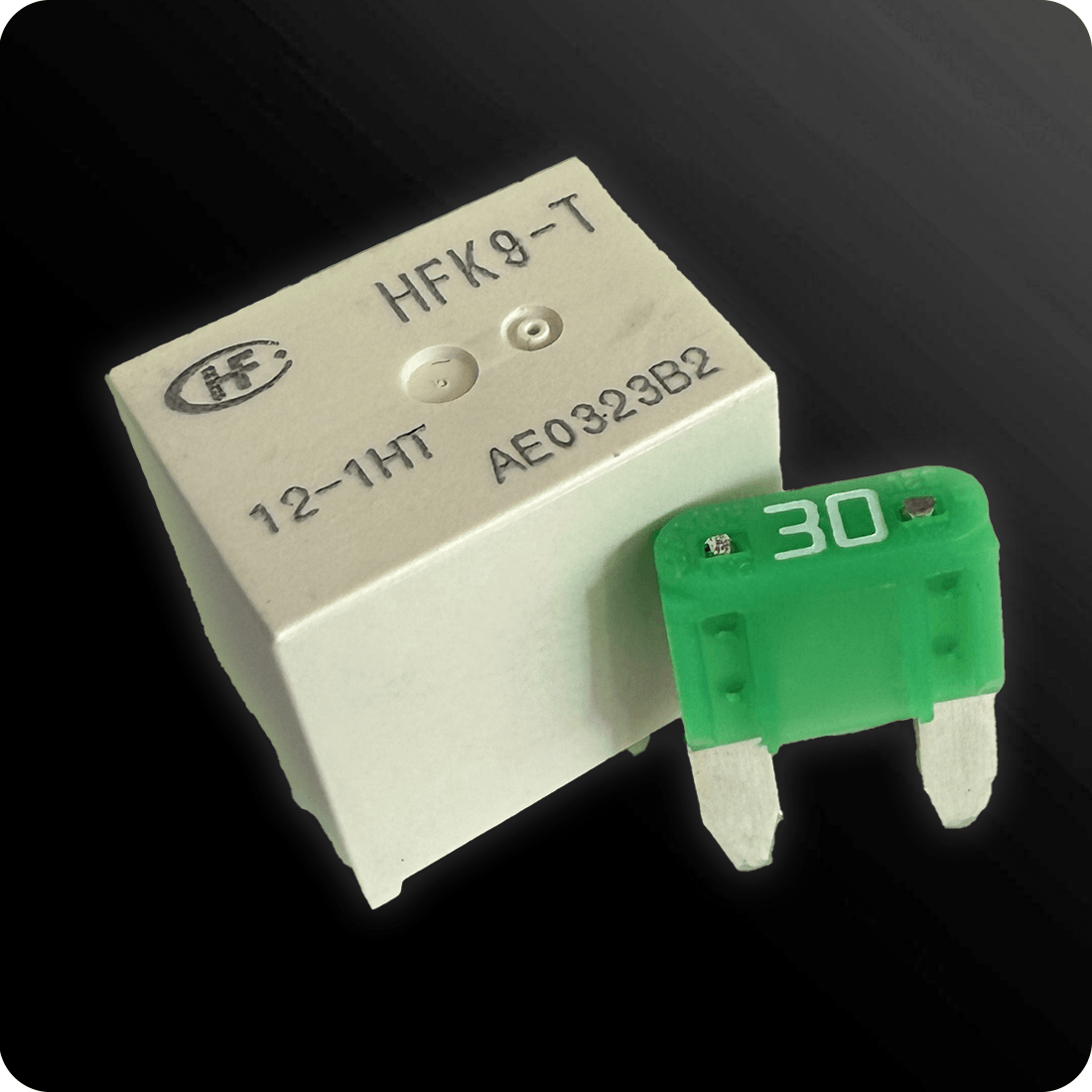

Often wired to high-current circuits (e.g., 30–40 amps).
Off-Road AccessoriesOperate air suspension systems, hydraulic jacks, or camping gear (e.g., fridge/freezers).
Performance UpgradesManage nitrous oxide systems, turbo timers, or cooling fans.
Convenience FeaturesPower inverters, CB radios, or dash cams without tapping into factory wiring. cuselectrical c
Where are the auxiliary switches?
The location of auxiliary switches (aux switches) depends on whether they're factory-installed or aftermarket. Here’s where to look in common setups of HansPilot products:

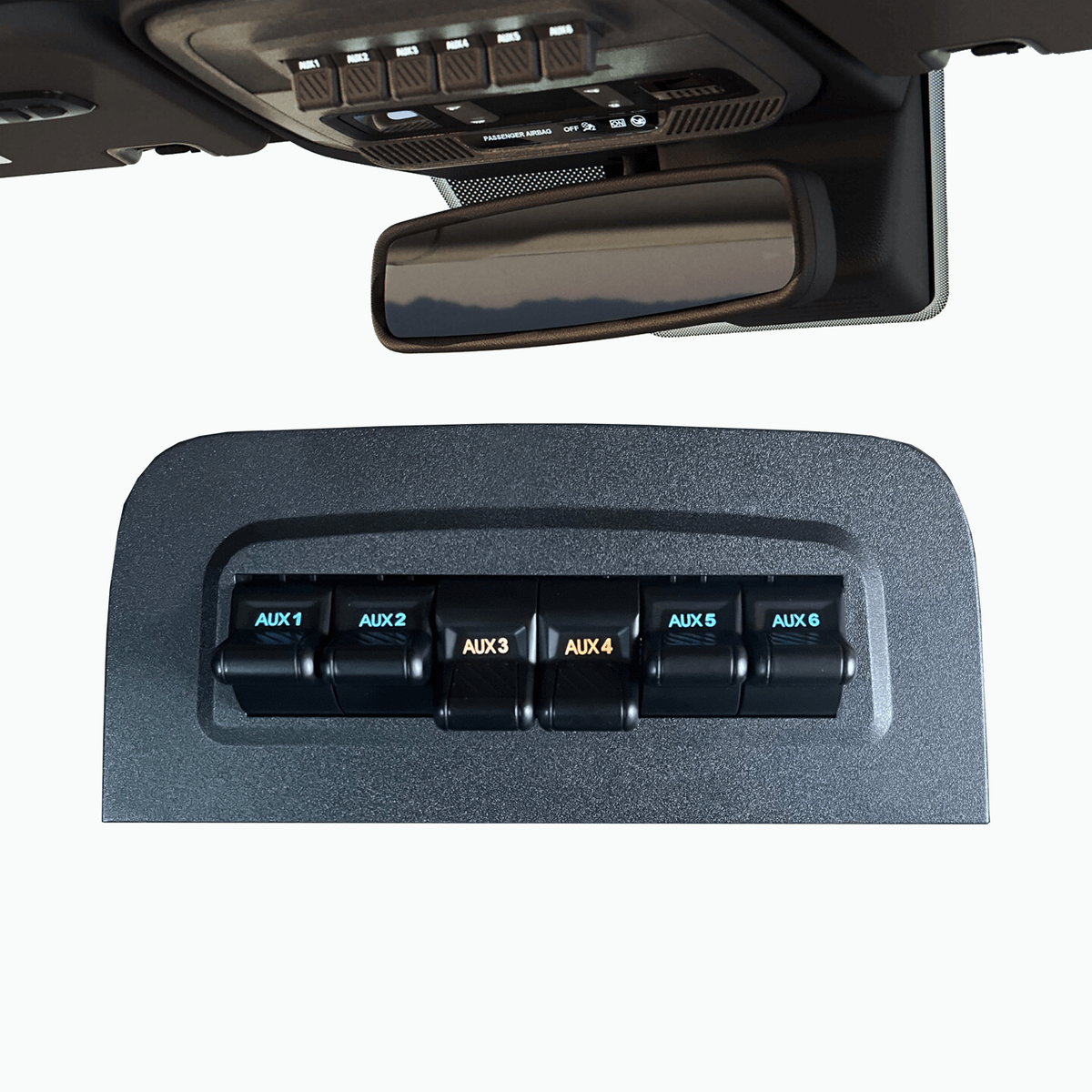

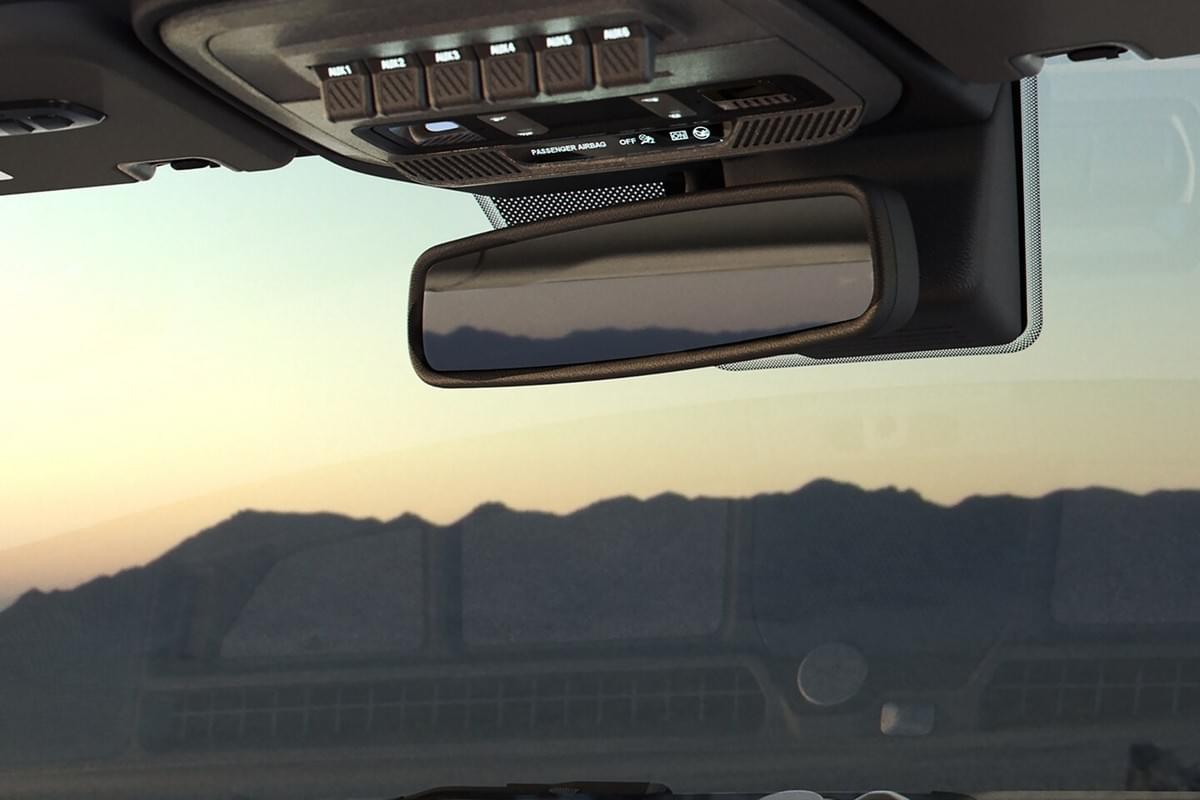

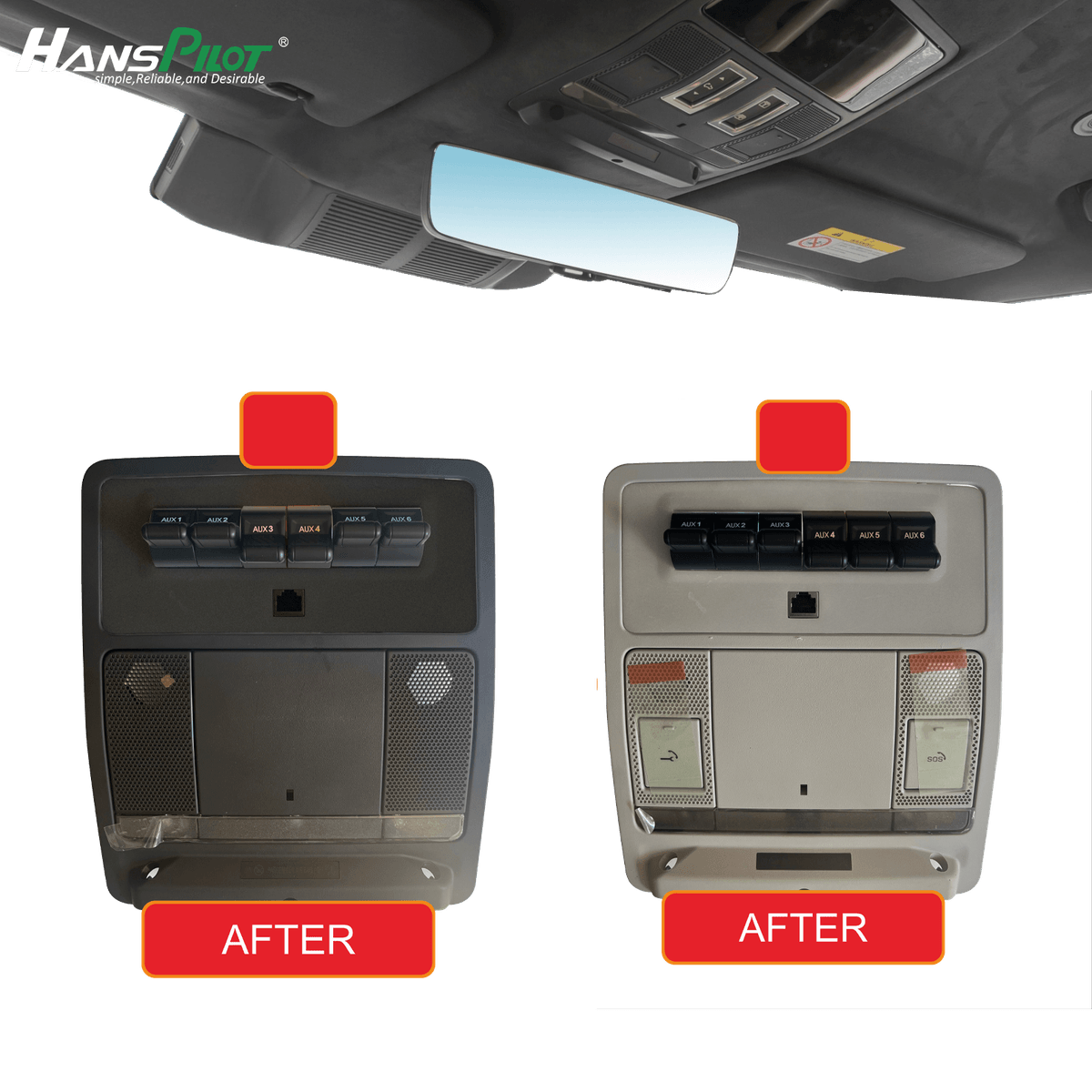

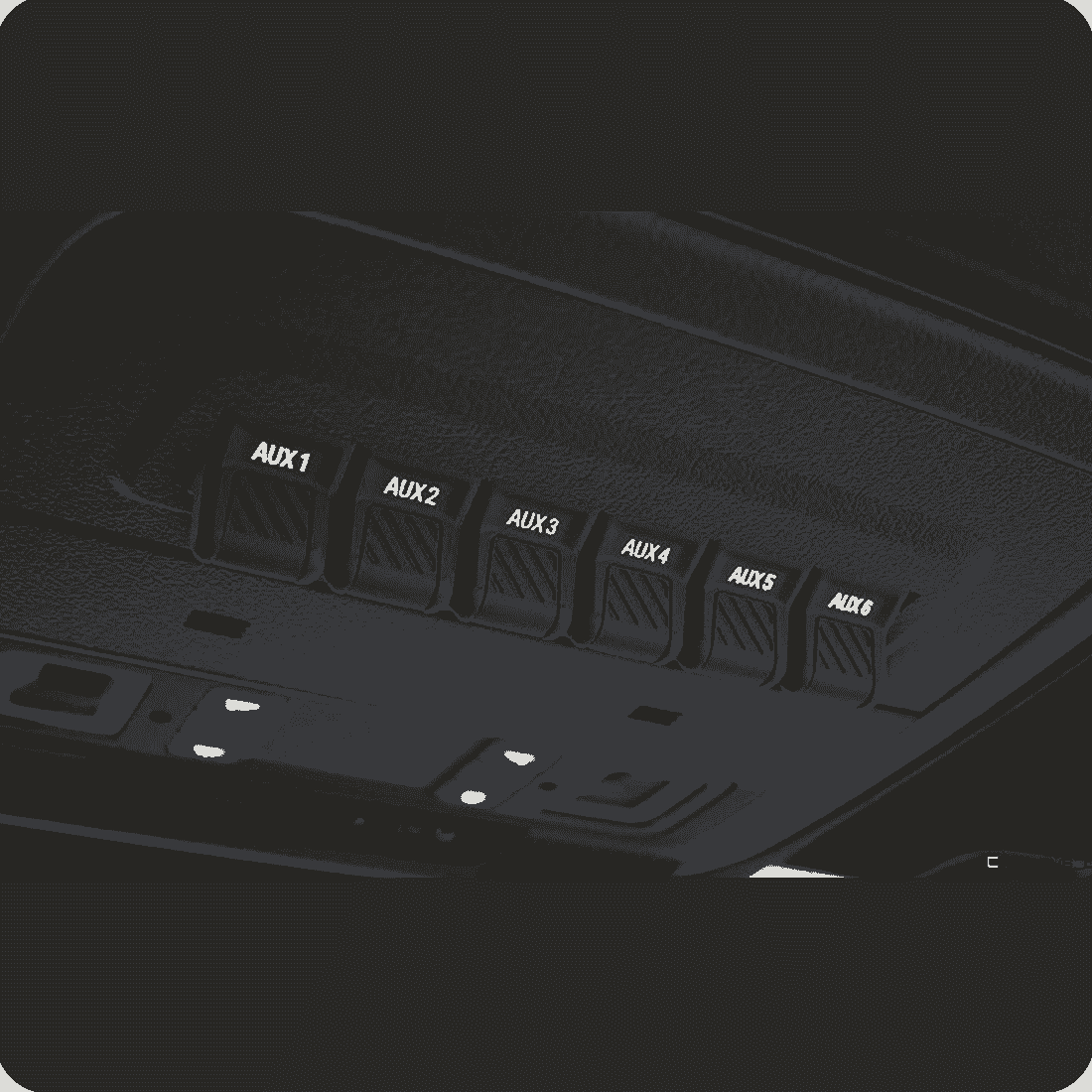

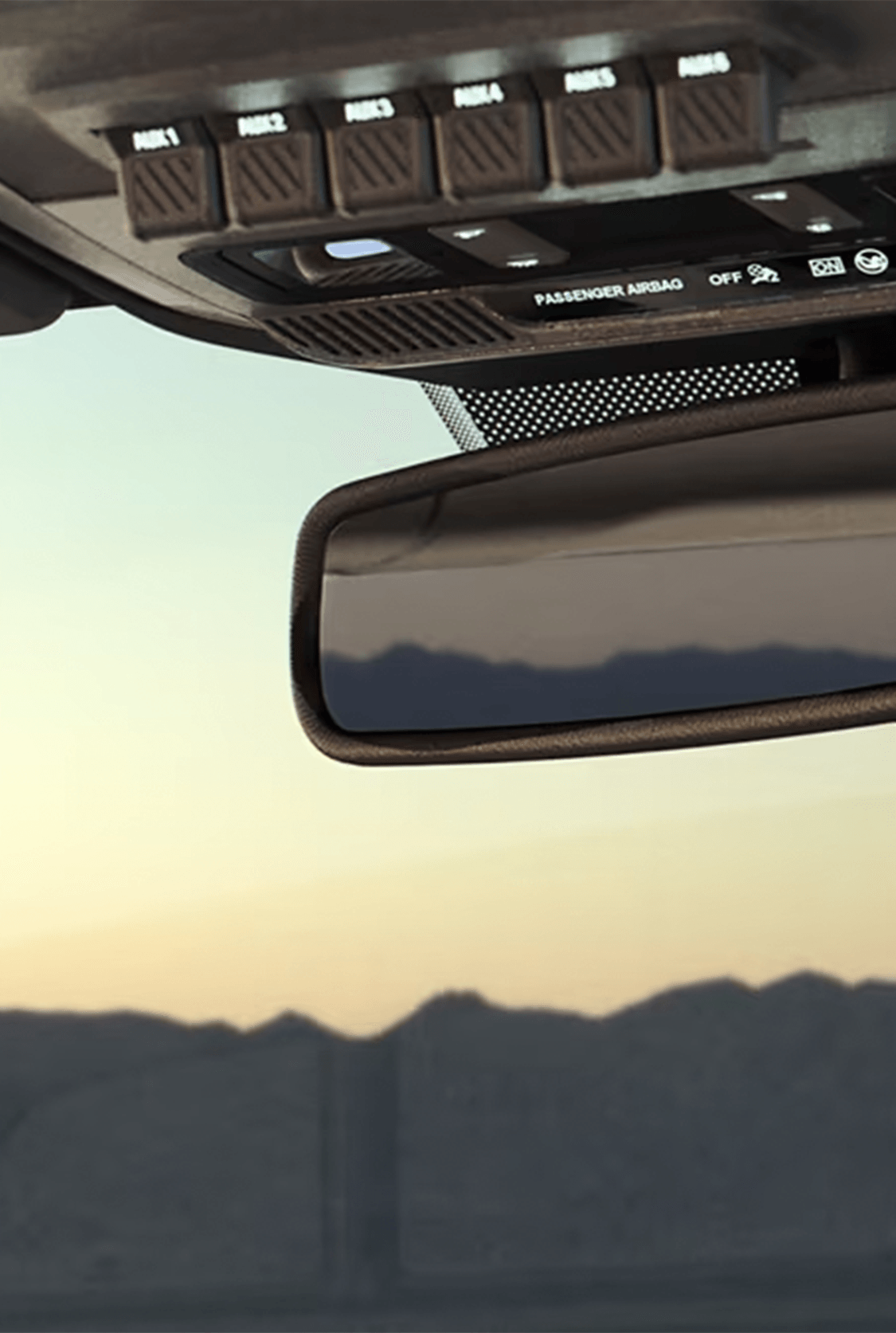

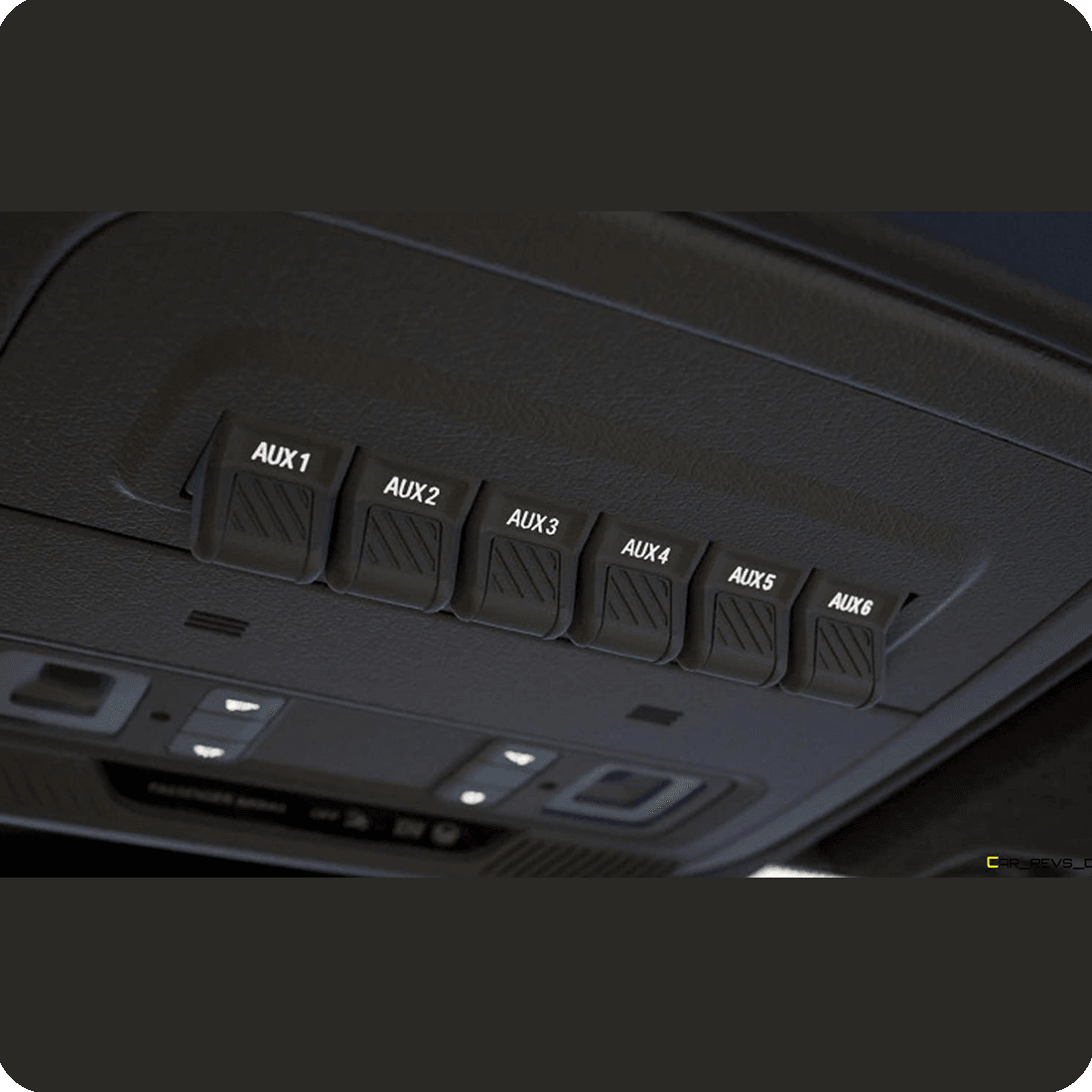

1. Jeep Wrangler/Gladiator (JL/JT)Location: Overhead console (near sun visors)
Layout: 6 switches labeled AUX 1–AUX 6 Amperage: 30A (AUX 1–6)

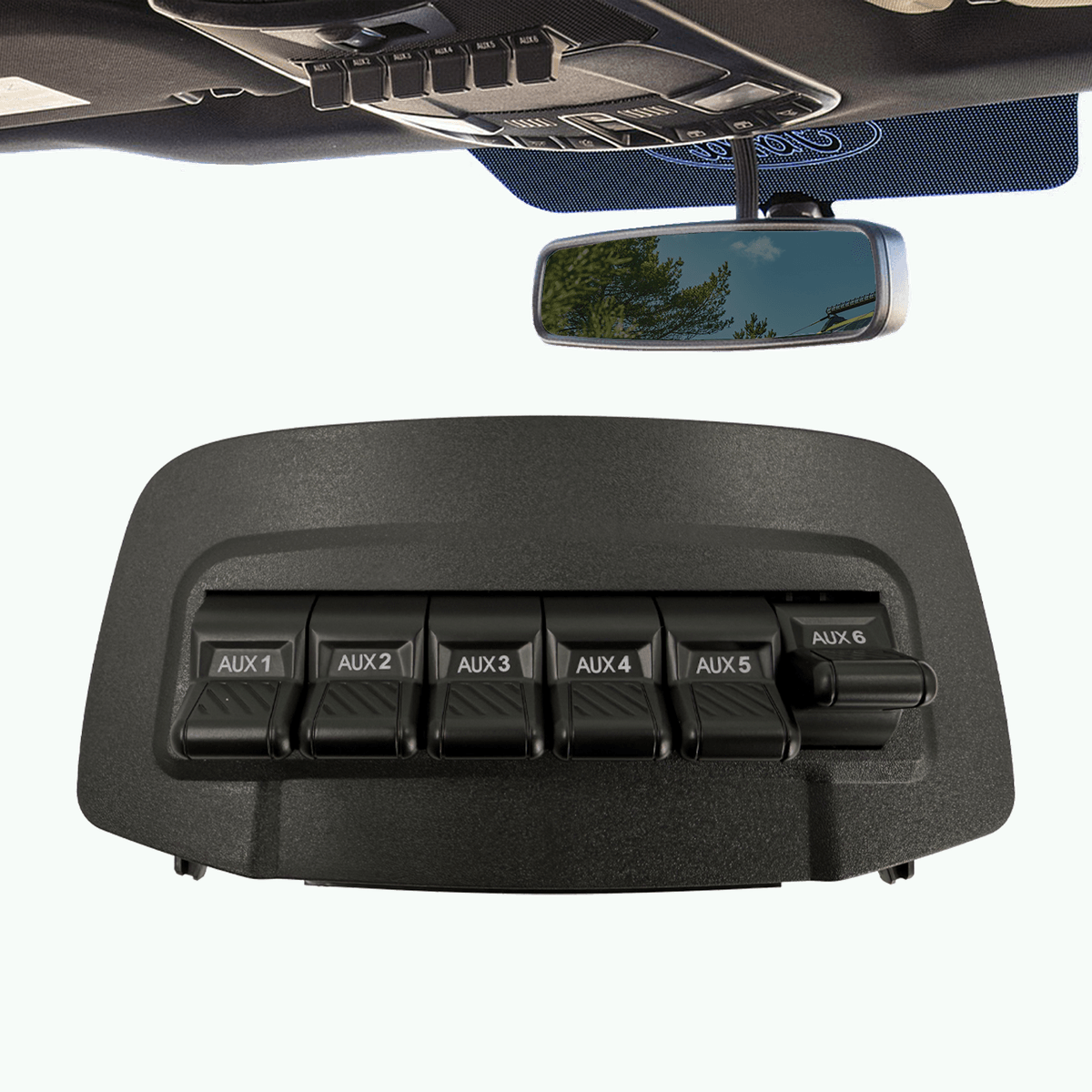

2. Ford F-150/Raptor
Location: Lower dashboard Overhead console (near sun visors)
Layout: 6 switches (AUX 1–6) with backlighting Amperage: 30A3. Toyota 4Runner/Tacoma TRD Pro
Location: Center console (near gear shifter)
Layout: 6 switches (AUX 1–6) with backlighting Amperage: 30A
4. RAM Trucks
Location: Overhead console or lower dash
Layout: 6 switches (AUX 1–6) with backlighting Amperage: 30AHow do I use the aux switches in my Bronco?
Well,once they’re wired up, you just flip the switch in order to power the accessory that you’ve assigned to that switch. When engaged, the switches will illuminate. The power will be coming from the battery so it’s best to have the engine running when using accessories so that you don’t come back to a dead battery.

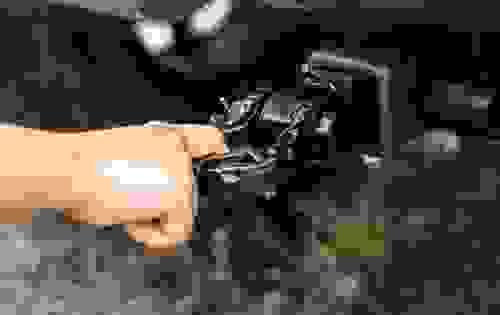

How to install the product.
Please kindly visit Youtube link from Middleton Motorposts
The video is for reference only. If there is any copyright infringement, please contact us.
